Coolster / Apollo 125cc Utility ATV Specifications
Model No. ATV-3125RX8U / Rider 8 (19" Tires)
Performance
Max Speed: 28 MPH depending on rider weight and trail conditions
Min Speed: 5 MPH using adjustable throttle limiter
Max Rider Weight: 233 Pounds
Recommended Rider Age: 7 + years of age
Engine Information
Size: 125cc 4-stroke Gas Engine
Gas: Regular unleaded
Cooling: Air-cooled
Max horsepower: 7.6 Hp @ 7500 RPM
Ignition: CDI
Starting system: Electric start
Battery: 12V, 5 or 7Ah
Engine oil: ATV 4-stroke Oil 10W-40
Engine oil capacity: 0.8 Quart
Chassis Information
Transmission: Fully Automatic Transmission with Reverse
Driveline: Chain to rear axle
Brakes, Rear: Hydraulic disc brake
Brake, Front: Dual Drum Brakes
Tires, Front: 19 x 7 - 8, 19” Dia.
Tires, Rear: 18 x 9.5 - 8, 18” Dia.
Suspension, Front: Dual wishbone with shock
Suspension, Rear: Swing axle with mono shock
Fuel capacity: 1.25 Gallons
Weight, G.W: 260 Pounds
Dimensions
L*W*H: 60”L X 38” W x 40” H
Height to seat: 28”
Min ground clearance: 6.0”
Safety and Other Features

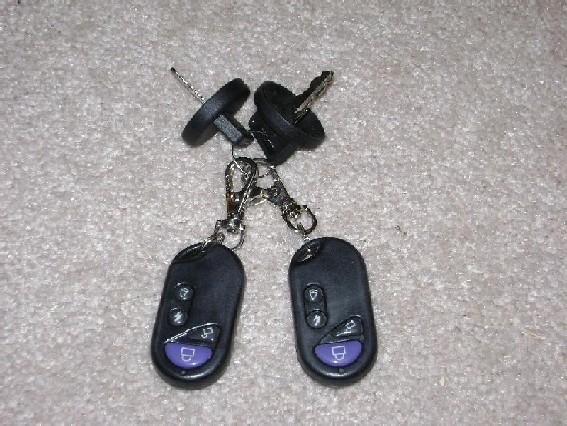

• Remote stop pendant can stop the engine from up to 150 feet away.
• Adjustable throttle limiter allows you to adapt the engine’s power as the rider’s skill develops; it can
limit the speed of the ATV anywhere from 5 to its maximum speed.
• Parking Brake
• Engine On/Off Power Switch
• Dual head lights high/low beam
• Dual tail lights with brake light
• Front and rear cargo racks with safety flag holder
• ATV is completely assembled and checked for quality assurance.
• Fully trail ready at time of purchase.
